Mwachidule

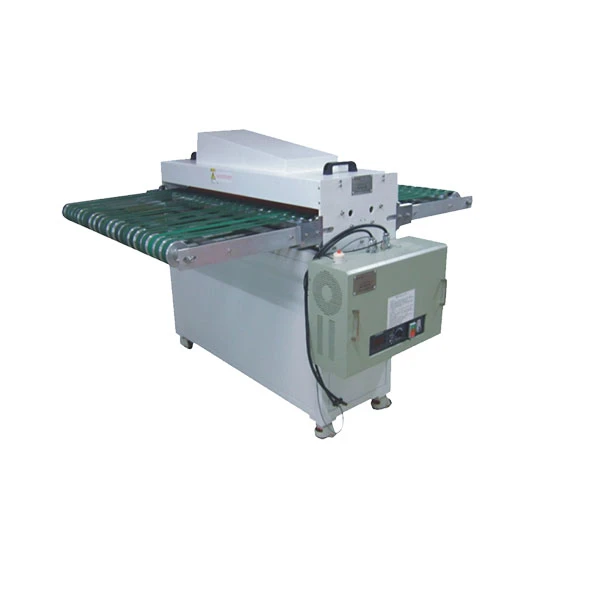

The Rigid Web Surface Treatment System imagwiritsa ntchito -magetsi otuluka pafupipafupi kuti asinthe ma polima, kukweza ma dyne kuti atsimikizire kuti inki, zomatira, ndi zokutira zomata nthawi zonse-zikuthamanga kwambiri.
Mfundo Zaukadaulo
|
Parameter |
Specification Range |
|
Kukula kwa Webusaiti |
500 mm - 2,500 mm (Mwambo mpaka 4,000 mm) |
|
Kutulutsa Mphamvu |
3 kW - 30 kW kulamulira molingana |
|
Maulendo Ogwira Ntchito |
20 kHz - 40 kHz ndi kutsata kwa resonance |
|
Electrode Air Gap |
1.0 mm - 3.0 mm micrometric kusintha |
|
Dielectric Roll |
Galasi la quartz kapena ceramic extruded (1.5 mm makulidwe) |
|
Max Line Speed |
Kufikira 400m / min |
Ubwino Wakuchita
Discharge Uniformity:Kufanana kwa kusiyana kwa mpweya kumasungidwa mkati mwa 0.05 mm kudutsa nkhope kuti asalowe m'malo-othandizidwa.
Kasamalidwe ka Kutentha:Kuumirizidwa-kuzizira kwa mpweya kuphatikizidwira mnyumba ya elekitirodi kumalepheretsa kutentha ndi kupotoza kwa gawo lapansi.
Chitetezo cha Magetsi:Mapangidwe a Solid-state IGBT generator akuphatikizapo-chitetezo chachifupi, kupondereza kwa arc, ndi ma circuits quick dump dump.
Kusamalira Mwachangu:Slide-mapangidwe a makaseti a electrode amalola kusintha katiriji kokwanira ndi kuyeretsa mkati mwa mphindi 15.
System Architecture
Wapamwamba-Wopanga pafupipafupi:Cabinet-yokhala ndi mphamvu zokhala ndi ma siginolo a digito ndi{1}}kusinthasintha kwanthawi yeniyeni kofanana ndi liwiro la mzere.
TReatment Station:Heavy-mafuremu opangira zitsulo zokhala ndi ma elekitirodi, chodzigudubuza, ndi utsi wambiri.
Chophulitsira Ozone:Wodzipatulira wodzipatulira wa centrifugal fan wopangidwa kuti atulutse ozone ndi mpweya wa ionized molunjika kumalo ochiritsira.
Operator Control Interface:Gulu la HMI la Touchscreen lomwe likuwonetsa-nthawi yeniyeni ya mphamvu yamagetsi, voteji, current, liwiro la mzere, ndi kuwunika zolakwika.
Kugwirizana kwazinthu
Mafilimu a Polyolefin:PE, PP, BOPP, ndi HDPE webs zomwe zimafuna kukwera mulingo wa dyne.
Pulasitiki Zaumisiri:PET, PVC, PA, ndi ma sheet a PC omwe amafunikira -kuyatsa mphamvu pamwamba.
Ma conductive substrates:Makanema opangidwa ndi aluminiyamu ndi zitsulo zopangidwa ndi zitsulo zogwiritsa ntchito ma elekitirodi apadera.
Mapepala Akuluakulu Owonjezera:Mapanelo apulasitiki olimba ndi matabwa ofikira 3 mm makulidwe amagwiridwa ndi masitayilo osinthidwa a nip roll.
Mechanical & Web Handling
Roll Dynamics:Mipukutu yolimba ya aluminiyamu idler yokhala ndi -zokhala yocheperako imalepheretsa makwinya pa intaneti komanso kusinthasintha kwamphamvu.
Nip Roll Assembly:Silicone-yokutidwa ndi backing nip roll imalepheretsa kuchiza chakumbuyo komanso kumachotsa mpweya.
Kukhazikika kwa Frame:Kugwedera-chonyowetsedwa chitsulo chassis kumapatula kumveka kwa makina akunja kuchokera pomwe pali mankhwala.
Zosindikiza:Zovundikira za aluminiyamu zokhala ndi ozoni ndipo zimalepheretsa kuipitsidwa kwa fumbi pa intaneti.
Production Line Integration
Kulunzanitsa Liwiro la Mzere:Mawonekedwe okhala ndi encoder master line kudzera pa 0-10V kapena 4-20mA ma analogi ma siginecha kuti aziwonjezera mphamvu zokha.
Fieldbus Communication:Imathandizira ma protocol a mafakitale a Ethaneti kuphatikiza Modbus TCP ndi Profinet pamalumikizidwe afakitole-pamlingo wa SCADA.
Interlock Safety Loop:Ma relay otetezedwa a Hardwired amalumikizana ndi mizere yoyimitsa mwadzidzidzi ndi masensa opumira pa intaneti kuti achepetse mphamvu yamagetsi nthawi yomweyo.
Kukhathamiritsa kwa Footprint:Compact modular footprint imagwirizana mwachindunji pakati pa mayunitsi otulutsa ma extruder ndi ma winders popanda kusinthika kwakukulu kwamapangidwe.
Industrial Applications
Extrusion zokutira:Pamwamba kutsegula kwa paperboard ndi polima gawo lapansi isanafike sungunuka polima extrusion lamination.
Lamination wopanda Solvent:Kupititsa patsogolo mphamvu zamakanema am'mwamba kuti mukwaniritse mphamvu zomangira zopitilira 4 N/15mm musanagwiritse ntchito zomatira.
Kusindikiza kwa Flexographic:-kuchiza ma webu a polyolefin osatetezedwa kuti inki isagwe komanso kuonetsetsa kuti madontho akuthwa akuthwa mothamanga kwambiri.
Kupanga kwa Battery Separator:Kusintha kwamakanema a microporous polyolefin pakumatira zokutira za ceramic pakupanga kusungirako mphamvu.
Kusintha mwamakonda & OEM
Makulidwe Omwe Amakonda:Utali wa nkhope zodzigudubuza udapangidwa kuti ufanane ndi-m'lifupi mwake kuyambira 300 mm mpaka 4,500 mm.
Kangaude-Mawonekedwe apasiteshoni:Zosintha zapawiri-zamankhwala am'mbali zophatikizidwa munyumba imodzi yolumikizana kuti itsegule nthawi imodzi pamwamba ndi pansi.
Kuphulika-Umboni Wotsatira:ATEX-zidavotera zida zamagetsi ndi makabati oyeretsedwa omwe amapezeka kuti azisungunulira-malo osindikizira kwambiri.
OEM Integration Kits:Makhadi a jenereta a modular ndi ma electrode ovula amaperekedwa kuti aphatikizidwe mwachindunji mumafelemu omanga makina.
Kuwongolera Kwabwino & Kuyesa
Mayeso a Dielectric Strength:High-kuyezetsa kwamagetsi kwamagetsi kumachitidwa pazitsulo zonse za ceramic ndi quartz mpaka 10 kV musanayambe kulumikiza.
RKuyendera kwanthawi zonse:Kuyeza kwa laser interferometer kumatsimikizira kuti kutuluka kwa radial sikudutsa 0.02 mm.
Thermal Burn-mu:Majenereta amayezetsa kupirira kutentha kwa maola 48- m'chipinda chozungulira pa madigiri 40 .
Kutsimikizika kwa Mulingo wa Dyne:Kuyesa kwafakitale kumayendera filimu yodziwika bwino ya polyethylene kutsimikizira kuti kachulukidwe ka mphamvu kameneka kamayenderana ndi zomwe zanenedwa.
Othandizira ukadaulo
Matenda akutali:Integrated VPN chipata chimalola mainjiniya kuti azitha kupeza zipika za jenereta, kusintha magawo, ndikuthetsa firmware patali.
Kupezeka kwa Zida Zosiyira:Zogwiritsidwa ntchito nthawi zonse monga manja a ceramic, zosefera ozoni, ndi zolimba-module za IGBT za boma zomwe zasungidwa kuti zizitumizidwa nthawi yomweyo.
Phukusi la Zolemba:Mabuku ophatikizika amaphatikiza ma schematics amagetsi, mamapu olembetsa a PLC, zithunzi za pneumatic, ndi mindandanda yazigawo zoperekedwa.
Thandizo la Kutumiza:Magawo-ndi{1}}malangizo oyika pang'onopang'ono ndi thandizo loyambira loperekedwa ndi akatswiri opanga mapulogalamu.
Mafunso Ofunsidwa Kawirikawiri
Q: Kodi mphamvu yamankhwala imawerengedwa bwanji pama liwiro osiyanasiyana a mzere?
A: Sikelo za mphamvu motsatizana ndi liwiro la mzere ndi m'lifupi mwake, zowerengedwera pogwiritsa ntchito njira za kachulukidwe ka mphamvu zoyezedwa mu watt-mphindi pa sikweya mita.
Q: Nchiyani chimalepheretsa mpukutu wochirikiza kuti usachiritsidwe kapena kuwonongeka?
Yankho: Dongosololi limagwiritsa ntchito manja okhuthala a dielectric pa mpukutu wapansi ophatikizidwa ndi mpweya wosungidwa bwino, kuwonetsetsa kuti kutulutsa kwamagetsi kumangoyang'ana pamlengalenga mpaka pa intaneti.
Q: Kodi moyo wamtundu wa dielectric quartz kapena malaya a ceramic ndi otani?
A: Pazikhalidwe zogwirira ntchito ndi kusefera koyenera kwa mpweya ndi kukonza mipata, mipukutu ya dielectric imapereka maola 20,000 mpaka 30,000 ogwirira ntchito asanabwezeretsedwe kapena kusinthidwa.
Q: Kodi ozoni imayendetsedwa bwanji mosamala pakugwira ntchito?
Yankho: Chowuzira chophatikizika chotulutsa mpweya chimakoka mpweya kudzera pamalo operekera chithandizo pamlingo wokhazikika wa volumetric, ndikutulutsa ozoni kudzera munjira yodzipereka kupita ku chowononga chothandizira kapena kunja kwa malowo.
Q: Kodi dongosololi likhoza kusinthidwa kukhala mzere wopangira womwe ulipo?
A: Kapangidwe ka makina osinthika amalola malo opangira chithandizo kuti agwere munjira zomwe zilipo kale ngati pali malo okwanira amzere komanso mipukutu yolozera kumtunda/kutsika.
